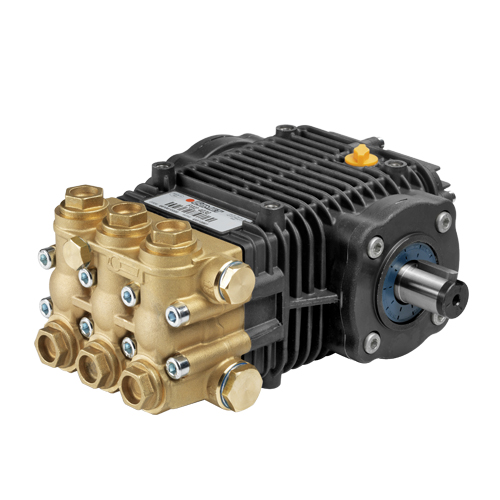

FW 2 – Ø 24 mm
Features
- Brass Head
- Reversible Crankcase for Right or Left Hand Mounting
- Hardened Stainless Steel Piston Guides Highly Efficient Stainless Steel Check Valves
- Solid Ceramic Plungers
- High & Low Pressure Seals: High Quality Buna-Textile Packings
- Additional Anti-Extrusion Ring under the Seal
- Solid Brass Manifolds
- Special Forged Brass Oversized Connecting Rods
- Die-Cast, Anodized Aluminum Crankcase
- Highly Quality Tapered Roller Bearings
- Optimal Oil Bath for High Speed Operation
- 24mm Solid Shaft for Belt Drive, Gearbox or Flex Couplers
Product Specs
- Shaft Size (Diameter)
- Ø 24mm
- Shaft Style
- Solid Shaft
- RPMs
- 1450
- Inlet Connection
- 1/2" FBSP
- Outlet Connection
- 3/8" FBSP
- Pump Head
- Brass
- Oil Capacity
- 19 fl oz
- Weight
- 19.4 lbs
- Max Temperature
- 140° F
- Warranty
- 5 Years
PUMP LITERATURE
Models
| Part # | Model Series | Flow Rate | Pressure | Power |
|---|---|---|---|---|
| 6410.0200.00 | FW2 3530 S | 3.4 GPM | 3000 PSI | 7.0 HP |
| 6410.0900.00 | FW2 3540 S | 3.4 GPM | 4000 PSI | 9.5 HP |
| 6410.0100.00 | FW2 4030 S | 4.0 GPM | 3000 PSI | 7.5 HP |
| 6410.0700.00 | FW2 4040 S | 4.0 GPM | 4000 PSI | 11.0 HP |
| 6410.0800.00 | FW2 4540 S | 4.4 GPM | 4000 PSI | 12.2 HP |
| 6410.0300.00 | FW2 5030 S | 5.0 GPM | 3000 PSI | 10.0 HP |
| 6410.0400.00 | FW2 5522 S | 5.6 GPM | 2200 PSI | 7.5 HP |
| 6410.0500.00 | FW2 5530 S | 5.6 GPM | 3000 PSI | 10.5 HP |
Repair & Rail Kits
| Part # | Kit Description |
|---|---|
| 5019.0218.00 | FW2 Water Seal Kit - 18mm (3530 - 4030 S) |
| 5019.0247.00 | FW2 Water Seal Kit - 18mm (3540 - 4540 S) |
| 5019.0039.00 | FW2 Water Seal Kit - 20mm |
| 5019.0219.00 | FW2 Oil Seal Kit - Solid Shaft |
| 5019.0048.00 | FW2 Hot Water Seal Kit - 18mm |
| 5019.0669.00 | FW2 Hot Water Seal Kit – 20mm |
| 5019.0703.00 | FW2 Hot Water Seals Only Kit – 18mm |
| 5019.0054.00 | FW2 Hot Water Seals Only Kit - 20mm |
| 5025.0011.00 | FW2 Valve Kit - 4 GPM/4000 PSI |
| 5025.0025.00 | FW2 Seal Kit – 5+GPM |
| 2409.0073.00 | FW Piston Kit – 18mm |
| 2409.0074.00 | FW Piston Kit – 20mm |
| 5011.0185.00 | Standard Rail Kit |
| 5011.0216.00 | Tall Rail Kit |
