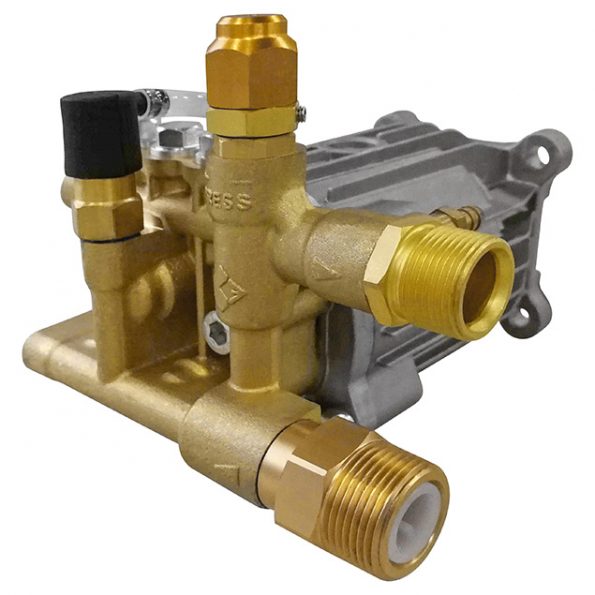

CXD – Ø 3/4”
Features
- Built-In Uniflow Unloader
- Built-In Chemical Injector with Inner Stainless Steel Parts
- Stainless Steel Plungers
- Stainless Steel Unitized Check Valves
- Forged Brass Manifold
- Industrial Duty Construction for Extended Life
- Patent Registered Ball Bearing Design
- Built-In Garden Hose Adapter
- Double-Sealing Buna-Textile U-Packing
- 3/4″ Hollow Shaft with Flange for Coupling to Gas Engines
Product Specs
- Shaft Size (Diameter)
- Ø 3/4"
- Shaft Style
- Hollow Shaft - Gas Engines
- Inlet Connections
- 1/2" FNPT
- Outlet Connections
- 3/8" MNPT
- RPMs
- 3400
- Pump Head
- Brass
- Built-In Unloader
- Yes
- Oil Capacity
- 2.0 fl oz
- Weight
- 6.6 lbs
- Max Temperature
- 140° F
- Warranty
- 1 Year
PUMP LITERATURE
Models
| Old Part # | Model Series | Flow Rate US | Max Pressure | Power |
|---|---|---|---|---|
| 6527.0003.00 | CXD 2525 G | 2.4 GPM | 2600 PSI | 4.7 HP |
| 6527.0004.00 | CXD 2530 G | 2.4 GPM | 3400 PSI | 5.5 HP |
Repair Kits
| Old Part # | New Part # | Kit Description |
|---|---|---|
| 5025.0084.00 | 10001-09111 | CXD Valve Kit |
| 5025.0103.00 | CXD Valve Kit - 3400 PSI | |
| 1215.0669.00 | CXD Valve Kit - Regulator | |
| 5019.0776.00 | CXD Gasket Kit - Piston (2530 G) | |
| 5019.0747.00 | 10001-09112 | CXD Gasket Kit - Pump (2525 G) |
| 5019.0748.00 | 10001-09110 | CXD Gasket Kit - Pump |
| 2409.0311.00 | 10001-09109 | CXD Piston Kit - Plunger (2525 G) |
| 2409.0346.00 | CXD Piston Kit - Plunger (2530 G) |
