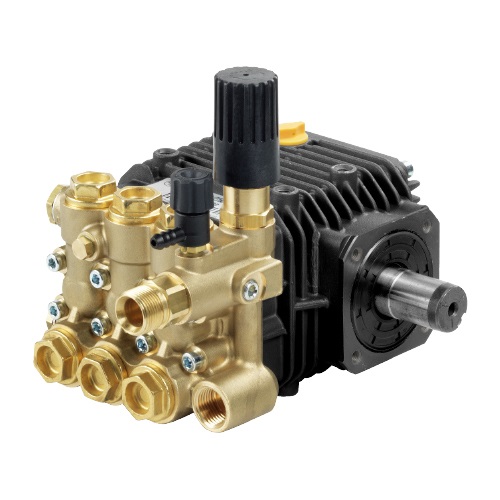

LWS-K Ø 5/8″
Features
- Built-In Unloader Valve
- Hardened Stainless Steel Piston Guides
- High Efficiency Stainless Steel Check Valves
- Abrasion Proof, Heat Resistant, Industrial Ceramic Plungers
- High Quality Buna-Textile Double-Sealing V-Packings
- Die-Cast, Anodized Aluminum Crankshaft-Fin Design for Optimal Operating Temperature
- High Quality Oversized Ball Bearings
- Optimal Oil Bath for High Speed Operation
- Designed For Belt Drive, Gearbox or Flex Couplers
Product Specs
- Shaft Size (Diameter)
- Ø 5/8"
- Shaft Style
- Hollow Shaft - Electric Engines
- RPMs
- 1750
- Inlet Connection
- 1/2" FBSP
- Outlet Connection
- M22 x 1.5M
- Pump Head
- Brass
- Built-In Unloader
- Yes
- Oil Capacity
- 11 fl oz
- Weight
- 13.4 lbs
- Max Temperature
- 140° F
- Warranty
- 5 Years
PUMP LITERATURE
Models
| Old Part # | New Part # | Model Type | Flow Rate | Pressure | Power |
|---|---|---|---|---|---|
| 6301.0654.00 | 31001-00035 | LWS-K 3020 E | 3 GPM | 2000 PSI | 4.0 HP |
Repair & Rail Kits
| Old Part # | New Part # | Kit Description |
|---|---|---|
| 5019.0037.00 | 10001-01078 | LW Water Seal Kit - 18mm |
| 5019.0041.00 | 10001-01082 | LW Oil Seal Kit - Hollow Shaft |
| 5019.0049.00 | 10001-01090 | LW Hot Water Kit – 18mm |
| 5019.0050.00 | 10001-01091 | LW Viton Seal Kit – 18mm |
| 5025.0011.00 | 10001-01607 | LW Check Valve - 4 GPM/4000 PSI |
| 1215.0585.00 | 10002-01336 | LW Unloader Kit - 2610 PSI |
| 5026.0130.00 | 10001-01817 | LW Unloader Rebuild Kit |
| 5026.0123.00 | 10001-01810 | LW Unloader Maintenance Kit |
| 2409.0072.00 | 10002-01691 | LW Piston Kit -18mm |
| 5011.0184.00 | Standard Rail Kit | |
| 5011.0216.00 | 10001-00546 | Tall Rail Kit |
